Standard Wheel Load Scales
The weighing surface will accommodate dual tires; however, the second tire will not be completely on the pad but it will be off the ground to ensure accurate weighing. Its non skid patterns ensure maximum grip in wet or snowy conditions.
***THIS MODEL IS UNAVAILABLE DUE TO SUPPLY CHAIN ISSUES***
Highlights
- Portable wheel loadscale
- Hand portable and light weight truck scale
- Massload’s lowest priced truck axle scale
- Wheel load accurate to within 0.25% FS
- Frequently used for check weighing and to avoid overweight fines
- Wheel load scales can be used on most hard level surfaces
- 2 Year warranty on truck scales and load cells
Product Details
STANDARD WHEEL LOAD SCALE
Built with precision engineering techniques, these wheel weigher scales provide an ideal solution for on-the-go weighing, meeting the demands of various industries.
Engineered to perform with accuracy rates as high as 0.25% FS, these wheel load scales stand out as an essential tool for check weighing and preventing costly overweight fines.
Images
PRODUCT SPECIFICATIONS
| Rated Capacity (pounds) | 10K weigh scale model |
|---|---|
| Load Cells | ML 600-5K (Output 3mV/V) |
| Accuracy | Wheel load accurate to 0.25% FSnominal |
| Overload Capacity | 150% full scale safe overload |
| Temperature Range | -20°C to + 60°C (operating) |
| Graduation | 10 lbs (10,000 lbs capacity) and 20 lbs (20,000 lbs capacity) |
| Weight | 40 lbs per weight pad |
| Material | High Strength Aluminum |
| Fatigue Limit | Unlimited cycles per day |
| Ground Requirements | These weigh pads must be used on a hard level and flat surface only, and should be level within 1/8″ per square meter |
| Dimensions | Max: 20″x20″x2 7/8″ (pad, handle, ramps) |
| Sealing Standard | IP-65 (LED Model): totally protected from dust; protected from low pressure jets of water from all directions; limited water entrance allowed. |
| Power | Rechargeable gel cell battery (comes with charger) |

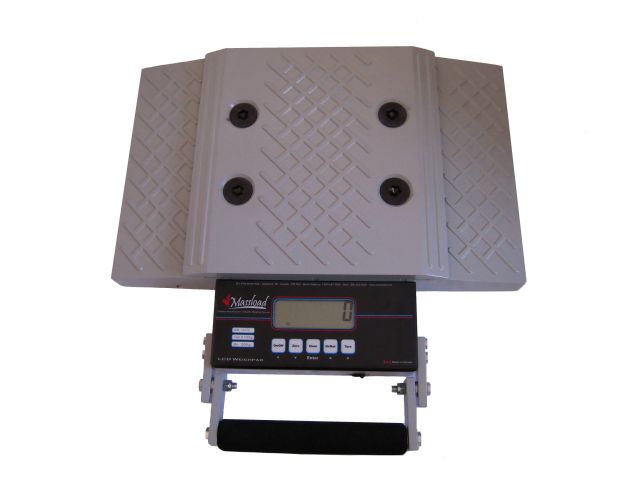

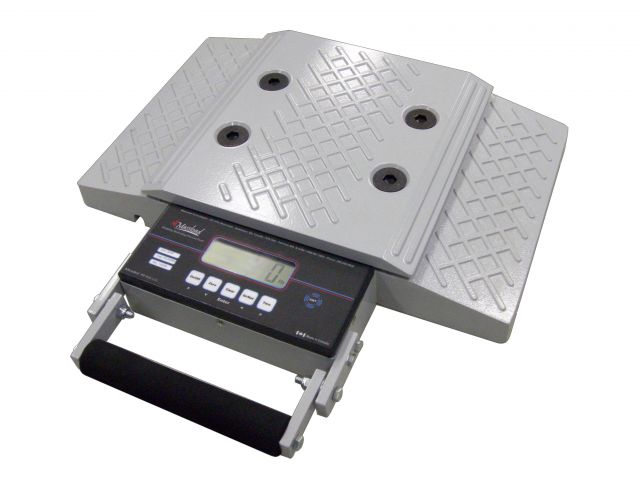

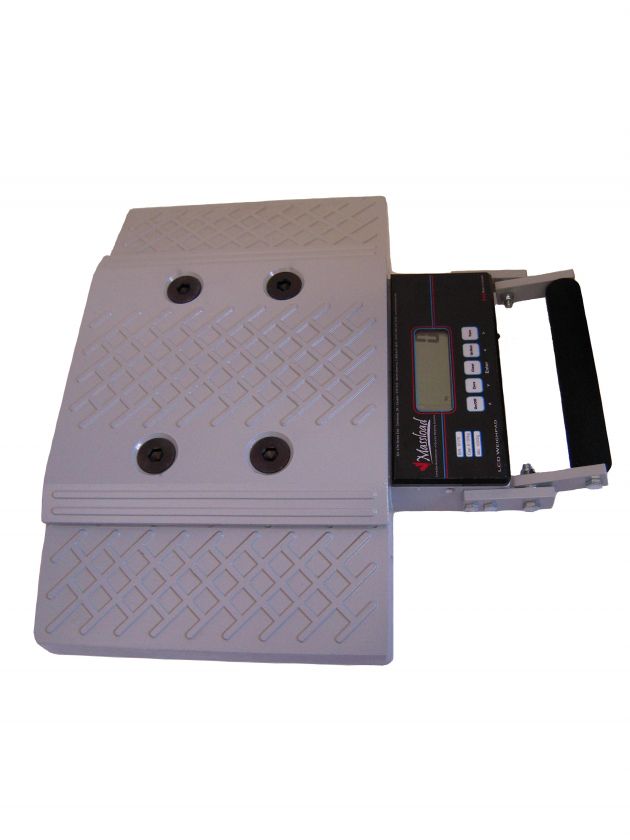

LCD WHEEL LOAD SCALE
- This weigh pad has a Massload manufactured LCD readout
- Powered by a rechargeable gel cell battery (charger included)
- Ready to weigh as soon as you lay it on the ground.
- This readout can accommodate additional slave weigh pads from 1 to 3 units
- Adjustable auto-off function
- User interface via 5 button keypad: on/off, zero, tare, gross/net, clear
- High contrast bright LCD (7/8″ x 3/8″)

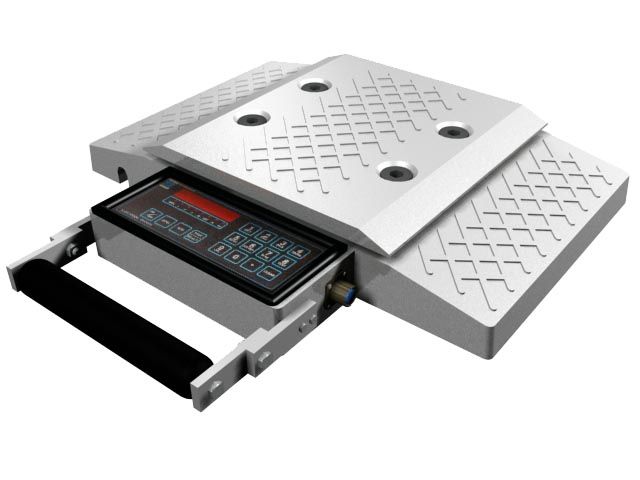

LED MASTER WHEEL LOAD SCALE
- This weigh pad has a M2000 LED readout
- This readout can accommodate additional slave weigh pads from 1 to 3 units
- IP-65 sealing standard
- 900 mhz radio link for North America
- Optional RS232 output for printer hookup
- Weigh pad powered by a rechargeable gel cell battery
- Battery charger switches from “fast charge” to “float charge” to protect from overcharge
SLAVE WHEEL LOAD SCALE
- This weigh pad has no integrated indicator
- It is designed to work with the LED or LCD Master Wheel Scale
- It can also work with any wired load cell indicator
- This is Massload’s lowest priced wheel load weigh pad

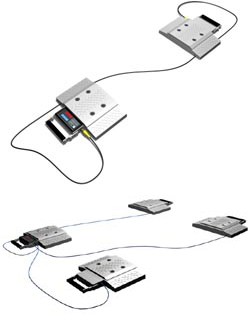

COMBINATION WHEEL LOAD SCALE
A weigh pad with a weigh indicator is considered a “Master” pad. Weigh pads without an indicator are considered “Slave” pads. A Master pad can be connected to one, two, or three slave weigh pads.
When weighing dual or tri axle vehicles it must be stressed that it is extremely important to have all wheels of an axle group as close to level as possible. To achieve this, it may require the use of dummy pads made of wood or a like material.
Please click on the following links to download or view additional information:
- Brochure LCD Wheel Load Scale
- Brochure LED Master Slave Wheel Load Scale
- Manual Massload LCD programming and calibration
- Manual LED (M2000) Master Slave
- Manual LED (M2000) Master
- Manual LED (M2000) Trouble-shooting
