Single Animal Scale Load Bars

Single Animal Scale Load Bars

Single Animal Scale Load Bar Under Cattle Squeeze by Massload TechnologiesLoad bars are a good solution for cattle scales and single animal weighing. They consist of two beams that go widthwise (like axles on a car) underneath your platform and penning. Load beams are heavy duty electronic weigh scales available in capacities of 2K5, 5K, or 10K pounds. They are excellent livestock scales for do-it-yourself weigh platforms.

One of the most important features of any scale is its foundation. Cattle scales should be kept as level as possible or you will lose accuracy. The floating foot ensures accuracy and reliability. Load beam livestock scales are calibrated at the factory, eliminating the need for an installation technician.

Highlights

  • Heavy duty electronic weigh scales for single animal weighing
  • Capacities: 2.5,000 lbs, 5,000 lbs and 10,000 lbs
  • Standard overload capacity for chute, penning and shock loading
  • Cattle motion filtering software to lock onto weight
  • Cattle scale accurate to 0.2% full scale
  • Adjustable levelling feet / free floating feet allow you to level the scale which is critical for accuracy
  • 1 year warranty

Product Details

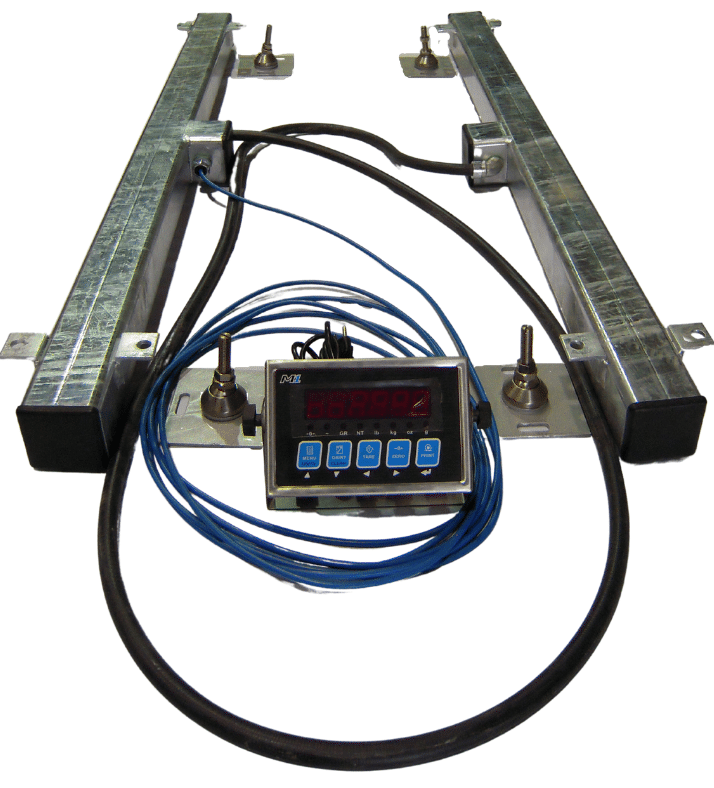

Livestock Scale Load Bars

Introducing our Livestock Scale Load Bars, a cutting-edge solution tailored for cattle scales and precise single-animal weighing.

Engineered to withstand demanding conditions, our load beams come in heavy-duty electronic weigh scales with impressive capacities of 2500lbs, 5000lbs, and 10000lbs, making them an optimal choice for DIY weigh platforms.

These superior load beams are galvanized to ensure consistent and accurate readings in even the most rugged outdoor installations. There are no moving parts to wear out, and no costly maintenance. The Load beams utilize four GN100 shear beam loadcells that are an industry standard and are interconnected by rodent-proof cabling.

The leveling foot / floating foot ensures accuracy and reliability. Load beam livestock scales are calibrated at the factory, eliminating the need for an installation technician. Install the scale, press the Zero button, and you’re ready to weigh.

Sizes

  • 36″ x 3″ x 3″ x 3/16″ – standard cattle scale
  • 48″ x 3″ x 3″ x 3/16″ – standard cattle scale
  • Custom sizes available on request (22″, 26″, 30″, 33″, 36″, 60″)

cattle squeezee with Massload load bar

PRODUCT SPECIFICATIONS

Capacities (pounds)

2.5,000 lbs, 5,000 lbs and 10,000 lbs

Graduation

1 lb (5,000 lbs capacity)
2 lb (10,000 lbs capacity)

Material

Galvanized High Strength Steel Tubing

Ground Requirements

Livestock scale should be secured to a solid, level foundation

TI-500 SL AND TI-500 BWL DIGITAL INDICATOR

Discontinued. Support and documentation is still available.

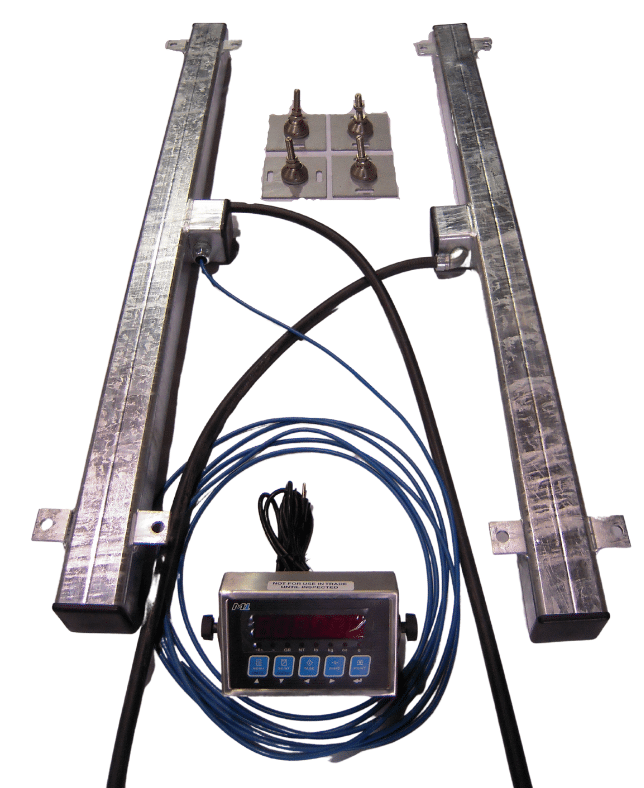

M1 LOAD CELL INDICATOR

The M1 LED digital indicator is a high quality Canadian made entry level indicator that is easy to use and adaptable to a wide variety of applications. It has lots of extras such as peak/hold, cattle motion filtering, auto print function, and can be use as a key pad functional remote display, and as a low cost wired remote display as well.

MAX DIGITAL INDICATOR

The MAX LCD Indicator adds battery operation and has the most sophisticated cattle filtering option of all our digital indicators. This ensures the highest degree of accuracy possible. It also comes with a stainless steel enclosure and is rated for outdoor use. It also has the MAX “shrink” option.
